Chevy Timing System Tensioning Issues – A Technical Tip from Gates

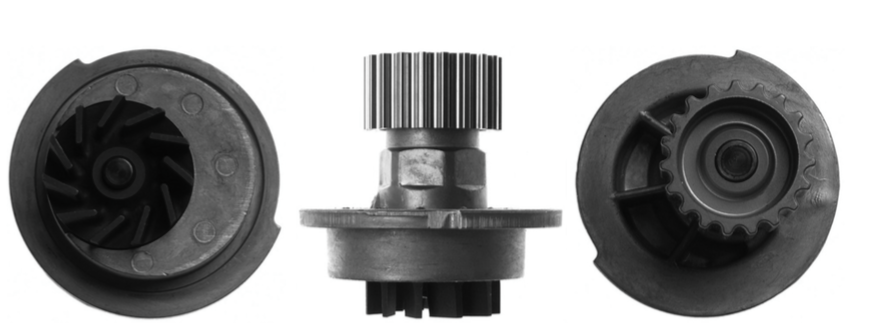

screen-shot-2016-11-01-at-17-01-52Gates engineers have identified a common issue during the setup of the timing system on these vehicles. Upon a closer look at the failure analysis, we have learned that drive failure is caused by not rotating the eccentric water pump to set proper tension, or setting tension while the engine is hot. Improper tension procedures result in a synchronous belt system that will not operate correctly, while drastically diminishing the life of the components. Use of a specific 41mm tool is required to turn the eccentric water pump.

Failure to follow the proper installation instructions can cause failures in the drive system. In this picture you can see the broken off pointer due to tensioner hitting the stops from improper tension resulting in drive system failure.

PROPER INSTALLATION IS CRITICAL. IMPROPER INSTALLATION WILL VOID WARRANTY AND WILL MOST LIKELY RESULT IN MAJOR ENGINE DAMAGE!
